For product designers, AI 3D modeling works best when it changes a simple visual idea into a clear design discussion. A sketch or reference image speeds up early exploration. However, it cannot show hidden geometry. It also misses dimensions, material behavior, and manufacturing readiness. A practical AI 3D modeling workflow follows a clear path. It starts with design intent and reference preparation. Then, it moves to generation, geometry cleanup, and design review. Finally, it covers physical validation and the manufacturing handoff. The designer still holds the main responsibility. They must decide what the model needs to show. They also must catch any risks before a supplier actually makes the part.
Define the Design Intent Before AI 3D Modeling
Convert the Product Brief Into Geometry Requirements
Start by looking at the product's main purpose. Think about the user, the environment, and the daily use conditions. Write down the obvious features. Note any interfaces that must fit with another part. You should also record the general scale, the material type, and the planned manufacturing route. A plastic housing, a metal fixture, and a simple decorative object might all start from a basic picture. Yet, each one needs very different geometry choices.
This initial brief sets a clear boundary for AI 3D modeling. A wall might need to stay thin. An opening might have to line up perfectly with a connector. A specific surface could need to support a hand grip. These strict rules should guide the initial generation process. You should not wait to check them until after the mesh finally appears.
Build a Reference Pack From Images and Known Dimensions
Gather clear photos, hand sketches, and exact dimensions. Include interface details and material clues. You need multiple angles for a good reason. They often show a side profile that a single camera shot hides. A simple ruler or a known part can easily set the right scale. Written notes about fixed details matter just as much as the pictures.
A strong reference pack makes the image-to-3D workflow much better. The designer provides real evidence and background context. This stops the system from just guessing and inventing a whole object from scratch. It also builds a helpful record for your team to review later on.
Generate and Inspect the First AI 3D Model
Compare Silhouette, Proportion and Key Features
Treat the first output as a basic test. Check the silhouette and overall proportions. Check openings, controls and small details against reference pack. Spin model around on screen to check for hidden mistakes which default front view won’t reveal. An AI-generated 3D model usually looks great at first sight. However, there might be some missing details. Save the model and mark the parts that need to be manually rebuilt.
Record Assumptions Before Approving a Direction
You must separate proven facts from the software's guesses. Many things stay hidden in a basic picture. These include internal walls, hidden supports, fasteners, and exact material thickness. Keep track of these missing details during AI 3D modeling. Write them down next to the saved file. This ensures a random software guess does not turn into a permanent design rule.
Clean AI-Generated Geometry Into Editable Product CAD
Repair Topology, Surfaces and Feature Continuity
Look closely at the new mesh or surface model. Search for tiny gaps, overlapping faces, and rough curves. Watch out for broken surface flow. A shape might look perfect from the outside. Yet, it can easily fail when you cut a section view. It might also break when you offset a face or try to measure the total volume.
Fixing this geometry is not just about making it look pretty. It decides if the file can actually be measured, changed, or shared with a factory. You should fix the shapes based on your next step. A simple visual prototype takes very little extra work. On the other hand, a file meant for machining or molding needs careful repair.
Rebuild Interfaces, Walls, Holes and Datums as Editable Features
You need to rebuild important assembly areas as normal CAD features. Interfaces, holes, and mounting points require real dimensions. Walls and specific curves should have clear relationships that you can update later. The main goal is a clean, editable CAD model. It must hold onto your original design intent for the team to review. Simply converting a mesh to a solid does not bring back those missing engineering choices.
Review an AI 3D Model Against Function and Manufacturing
Check Assembly, Material and Process Constraints
Always check the model against your planned assembly steps, materials, and factory processes. Look at how parts fit together. Verify the clearances and tool access. Think about print orientation and support structures. You also need to consider surface finishing and mold rules. A shape might look beautiful on a screen. However, it could still need a split line, a draft angle, or a completely different wall layout.
Your design review must match the chosen production method. 3D printing brings up questions about part orientation and supports. CNC machining makes you think about tool reach and how to hold the metal. Molding forces you to look at parting lines, draft angles, and long-term tool life.

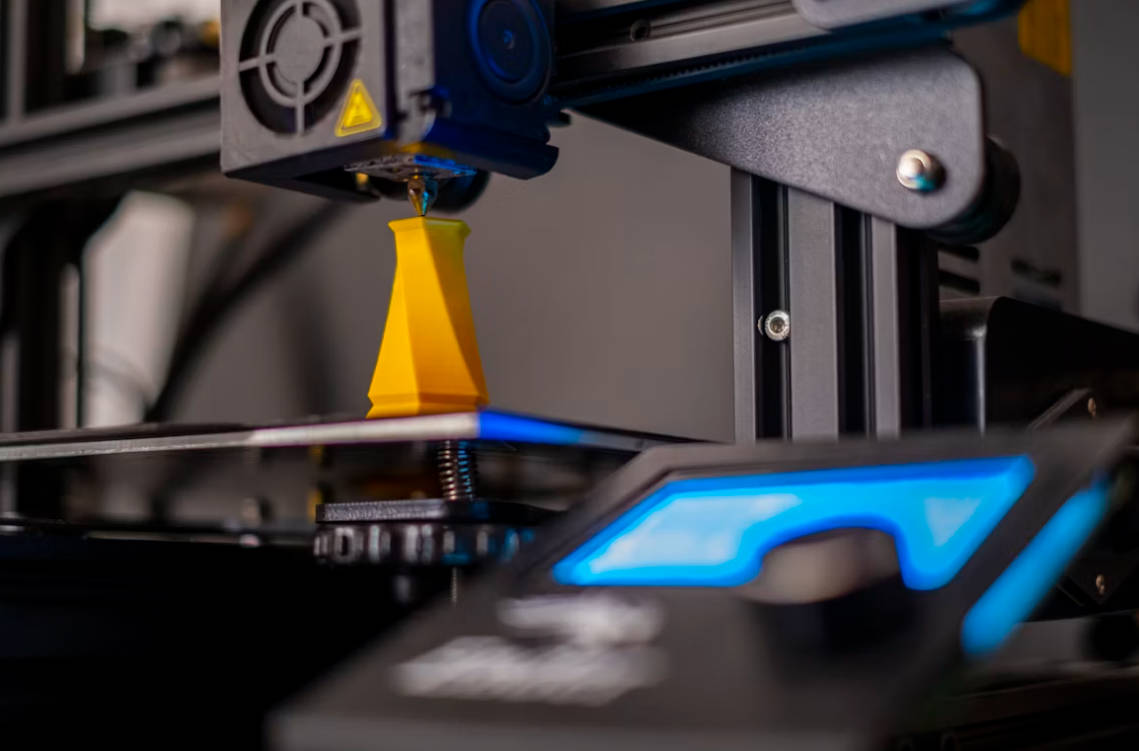

Select the Prototype Route for the Highest-Risk Assumption
Pick your prototype method based on your biggest design worry. Basic 3D printing answers questions about general shape and daily handling very fast. CNC machining might do a better job showing real engineering materials. It also tests exact fits and smooth surface finishes. The best prototype gives you hard facts for the next project stage. It should do more than just show off a cool software tool.
Iterate From Physical Prototype to Manufacturing Handoff
Turn Prototype Findings Into Controlled CAD Revisions
Write down exactly what the physical prototype teaches you. Note the fit, daily handling, and visual appeal. Check the assembly steps and the material feel. Connect every single note to a specific feature in your file. If a handle feels bad, find that exact surface and fix it. If a port is too tight, record the clearance problem right away. This habit keeps your physical testing tied directly to your digital file history.
Package the Model, Drawings and Acceptance Criteria
Get the final model ready with proper 2D drawings or key dimensions. List the material, total quantity, and surface finish rules. Add your tolerances, inspection steps, and part mating details. Be sure to include any test findings that affect the factory work. A supplier needs to know exactly what is locked in place. They also need to know what can shift and what the first quality check must prove.
How Momaking Supports the AI 3D Modeling Workflow
Turn a Reference Image Into a Reviewable Structural Direction
At Momaking, we can start our process with a simple image or a rough concept. We use 3D modeling and structural design review. We also bring in user feedback long before anyone picks a factory method. The real value here is getting a solid, testable design direction. It is not just an unsupported claim of instant, ready-to-make CAD. Your starting brief must still name the function, material, and batch size. It also needs to state the main question your next prototype will answer.

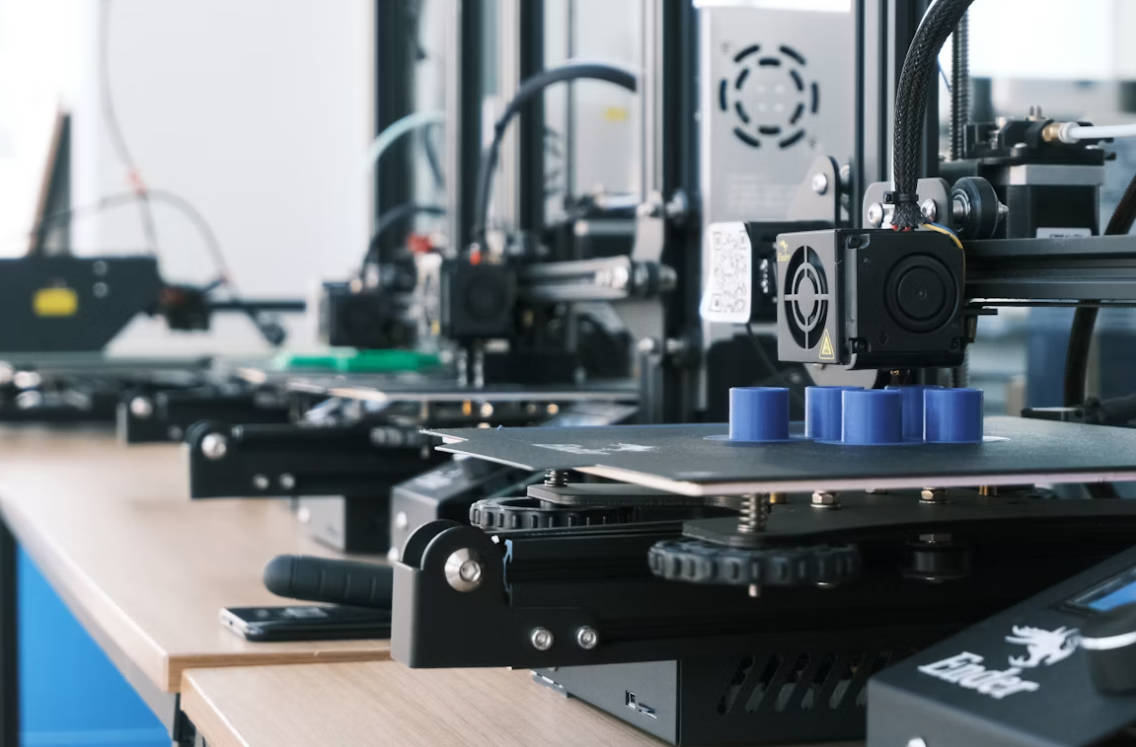

Match the Validated Model to 3D Printing, CNC or Molding
After the team reviews everything, At Momaking, we connect your fixed model and rule set to the right service. This could be 3D printing, CNC machining, mold making, or injection molding. The part's geometry, chosen material, and total order size decide the best path. The true purpose of AI 3D modeling is to save time. It shrinks the gap between a fresh design idea and a real production choice.
FAQ
Q: Is Every AI 3D Model Ready to Print or Machine?
A: No. The file usually needs some topology repair and exact dimensions first. You also have to add editable features and run interface checks. A full process review and physical testing must happen before a supplier can actually use it to make parts.
Q: Which Inputs Produce the Most Useful AI 3D Modeling Result?
A: You should provide a very clear design intent and multiple camera views. Include known dimensions, material goals, interface details, and factory limits. A strong set of reference pictures stops the software from making wild guesses.
Q: Can Momaking Help After an AI-Generated Concept Is Created?
A: Yes. Momaking can talk through the structural design, 3D printing, and CNC machining options. We can also handle mold manufacturing and injection molding after we look at your concept. However, the final handoff to the factory always needs human approval for the design and the chosen production route.
